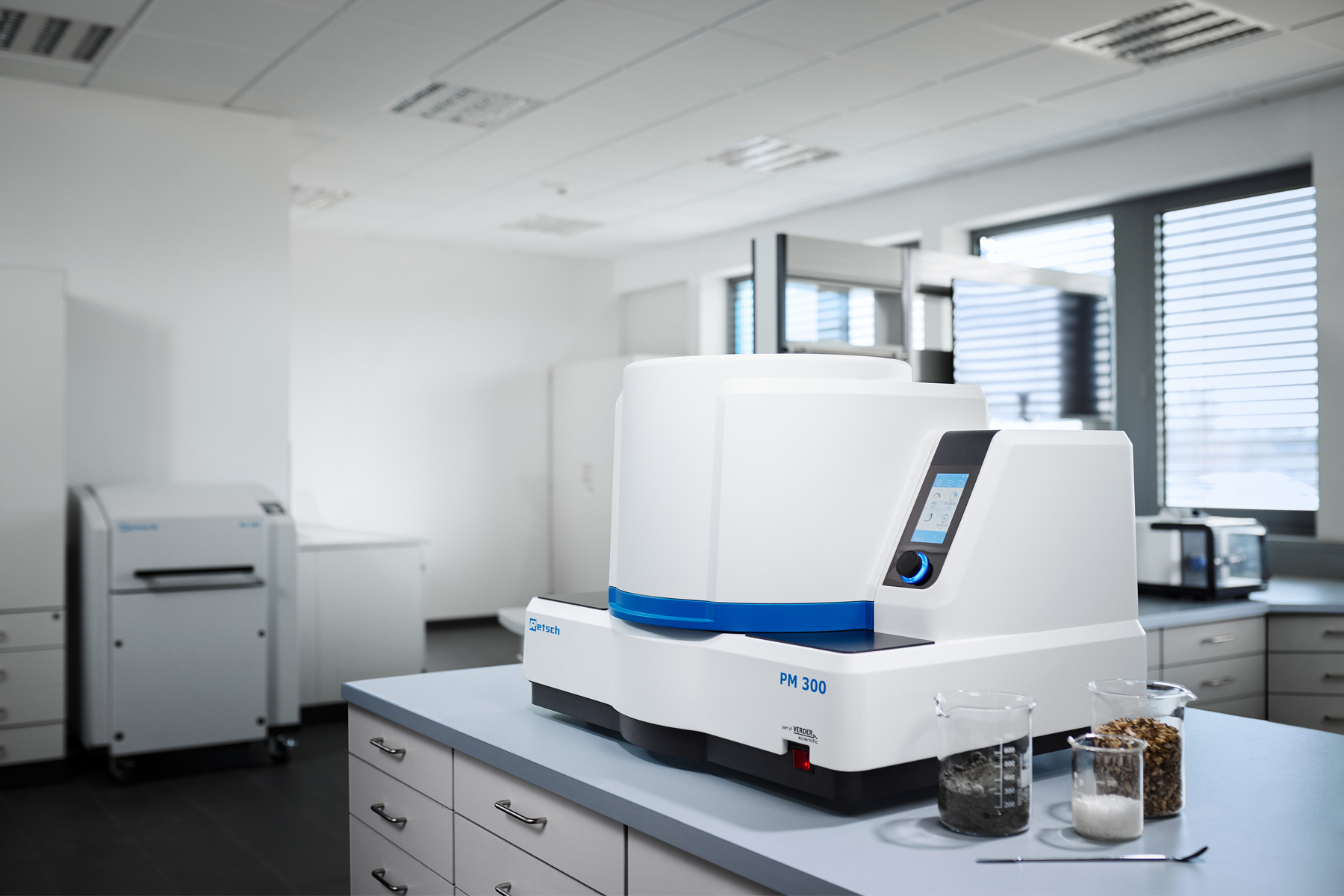

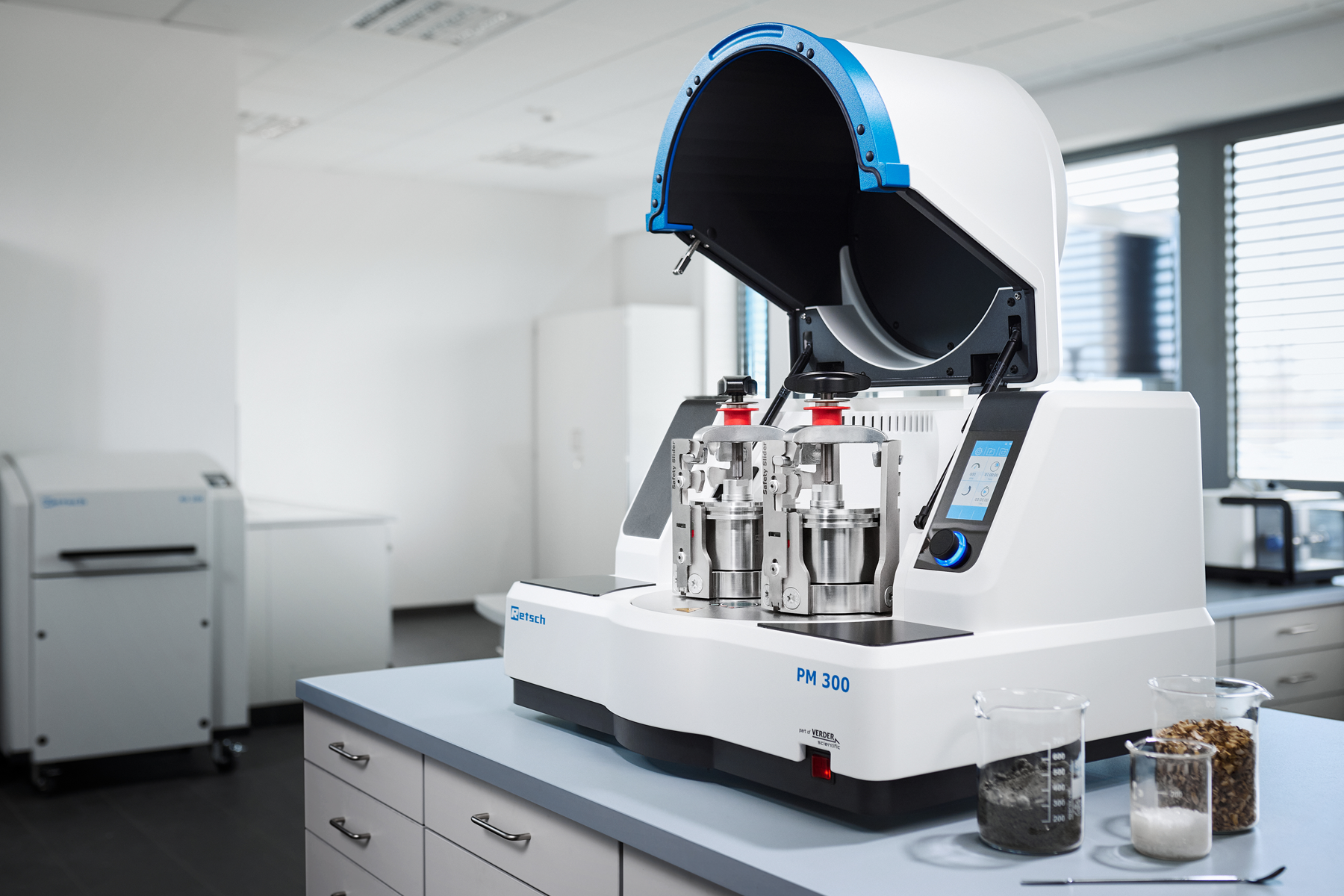

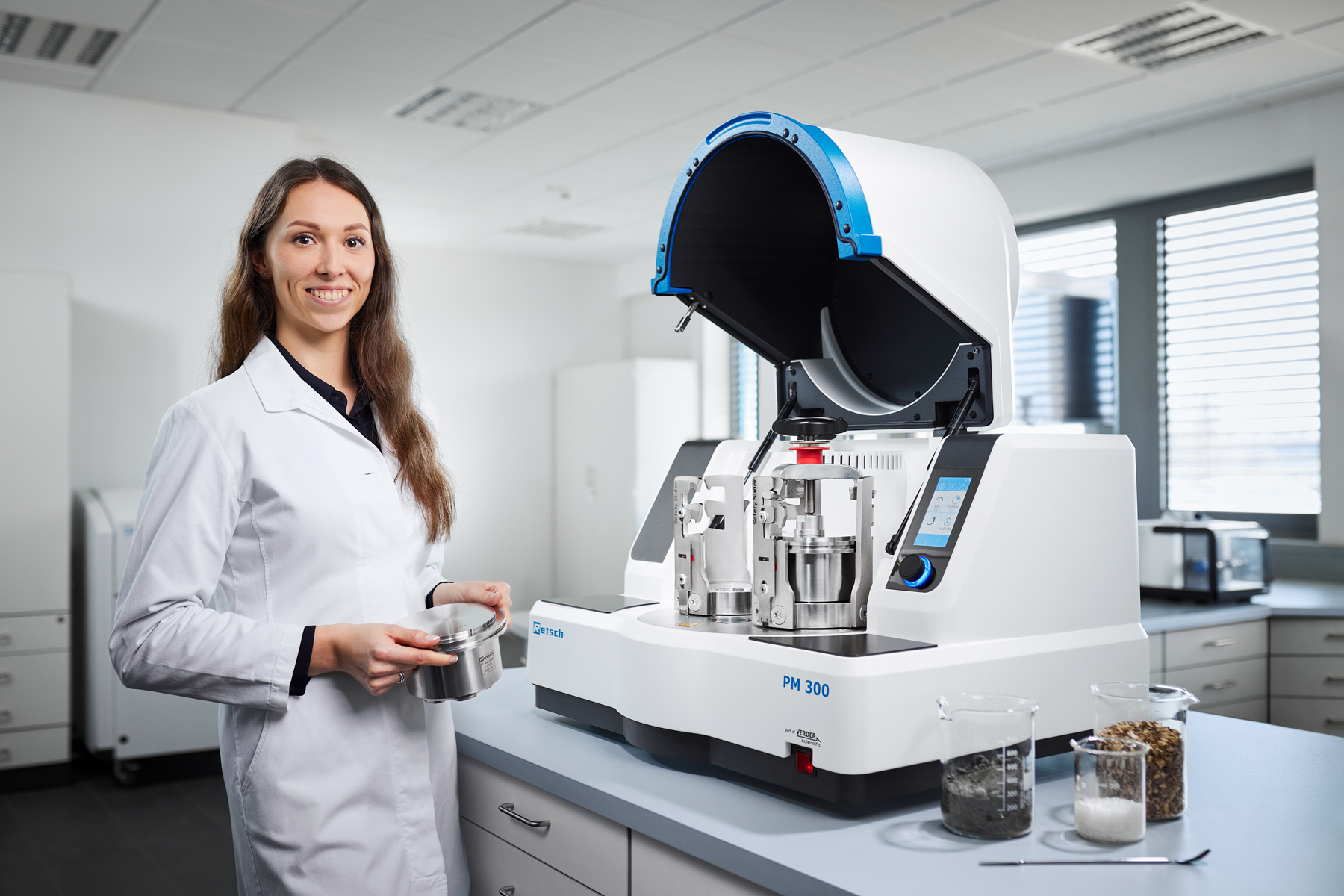

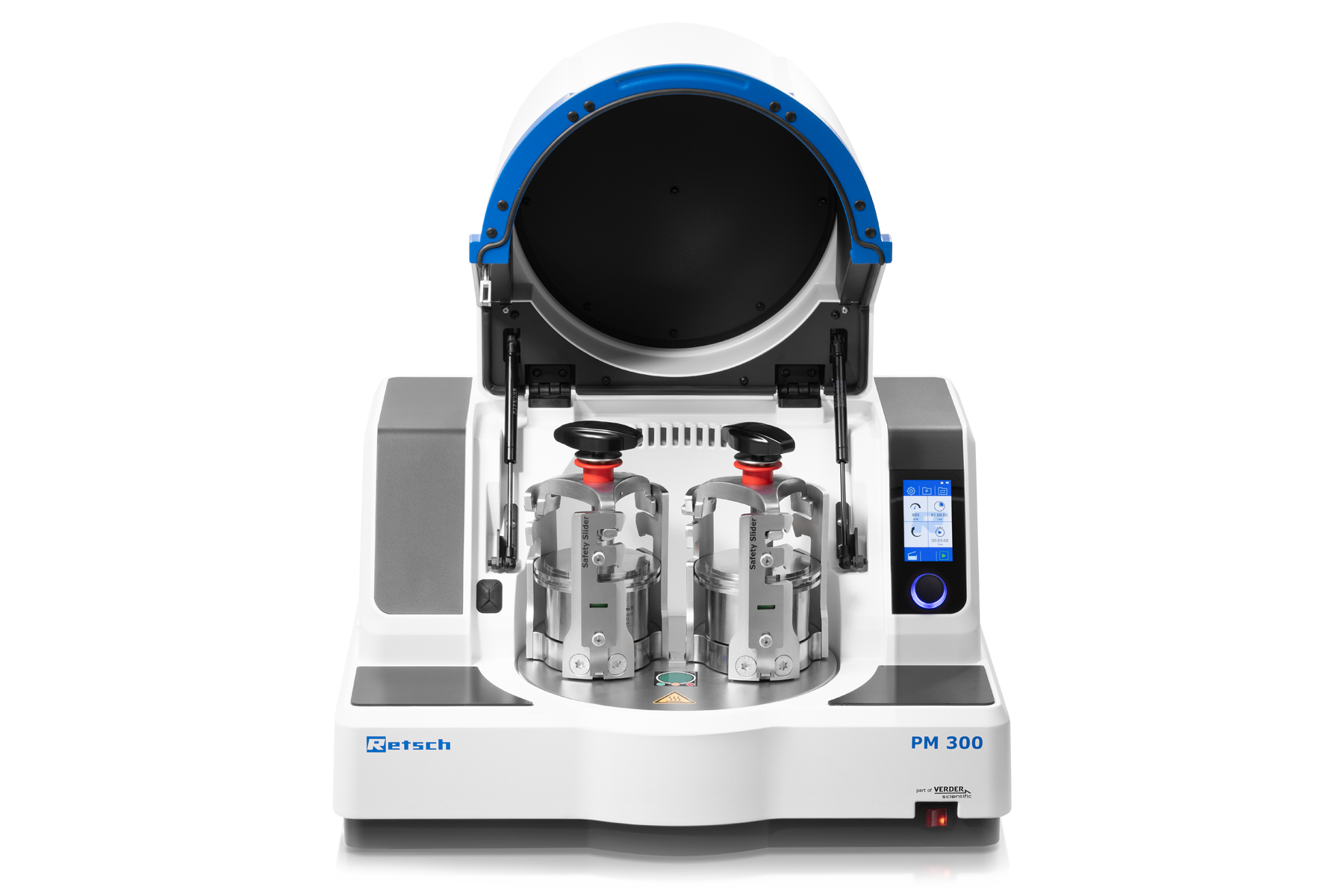

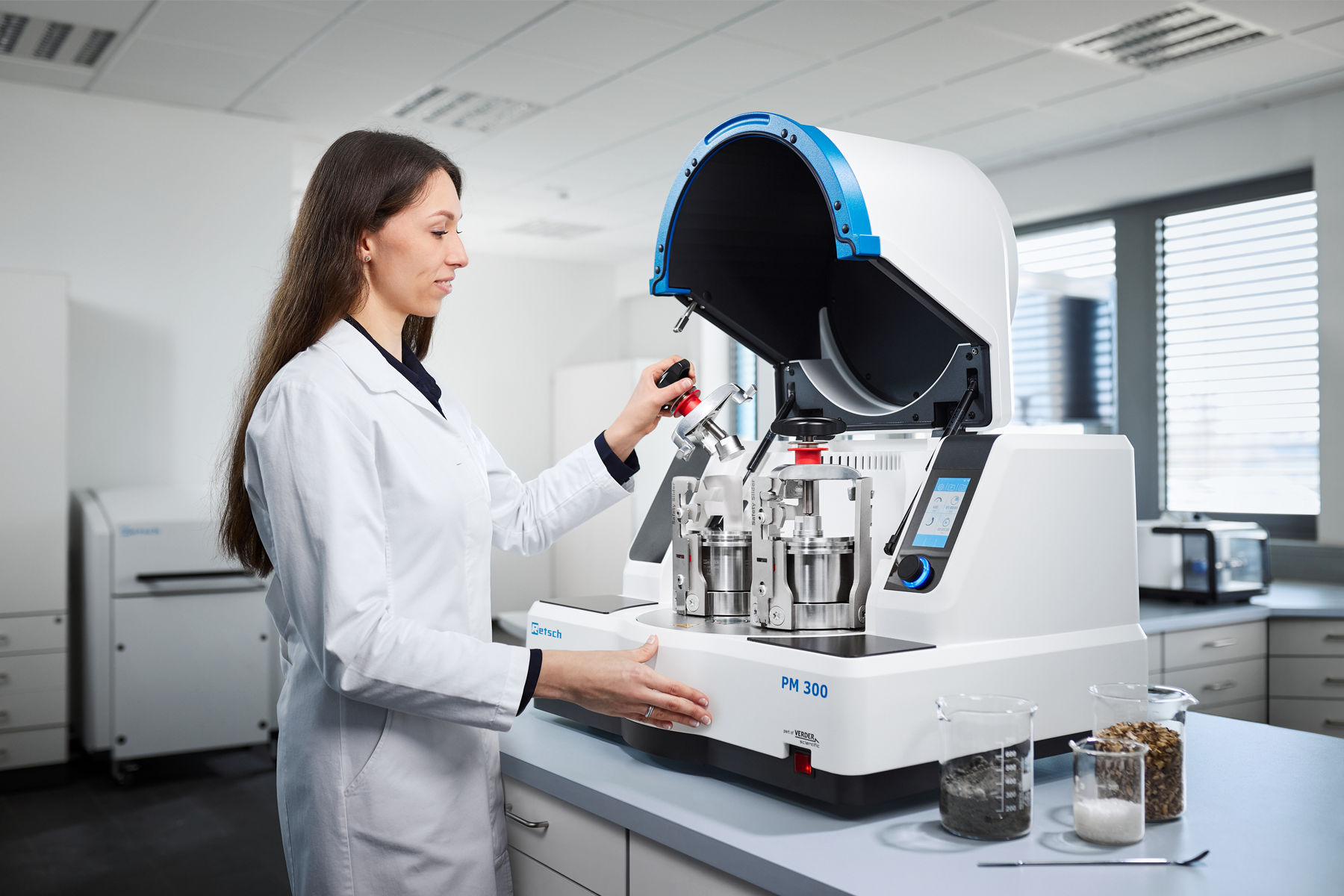

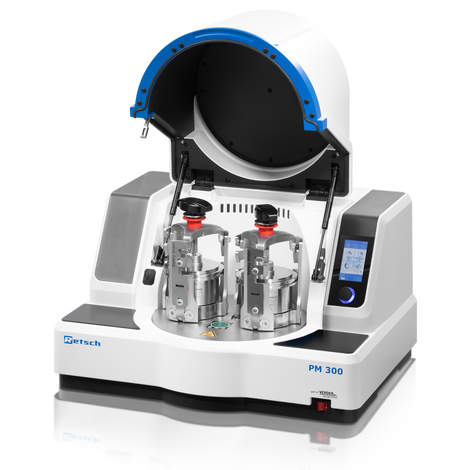

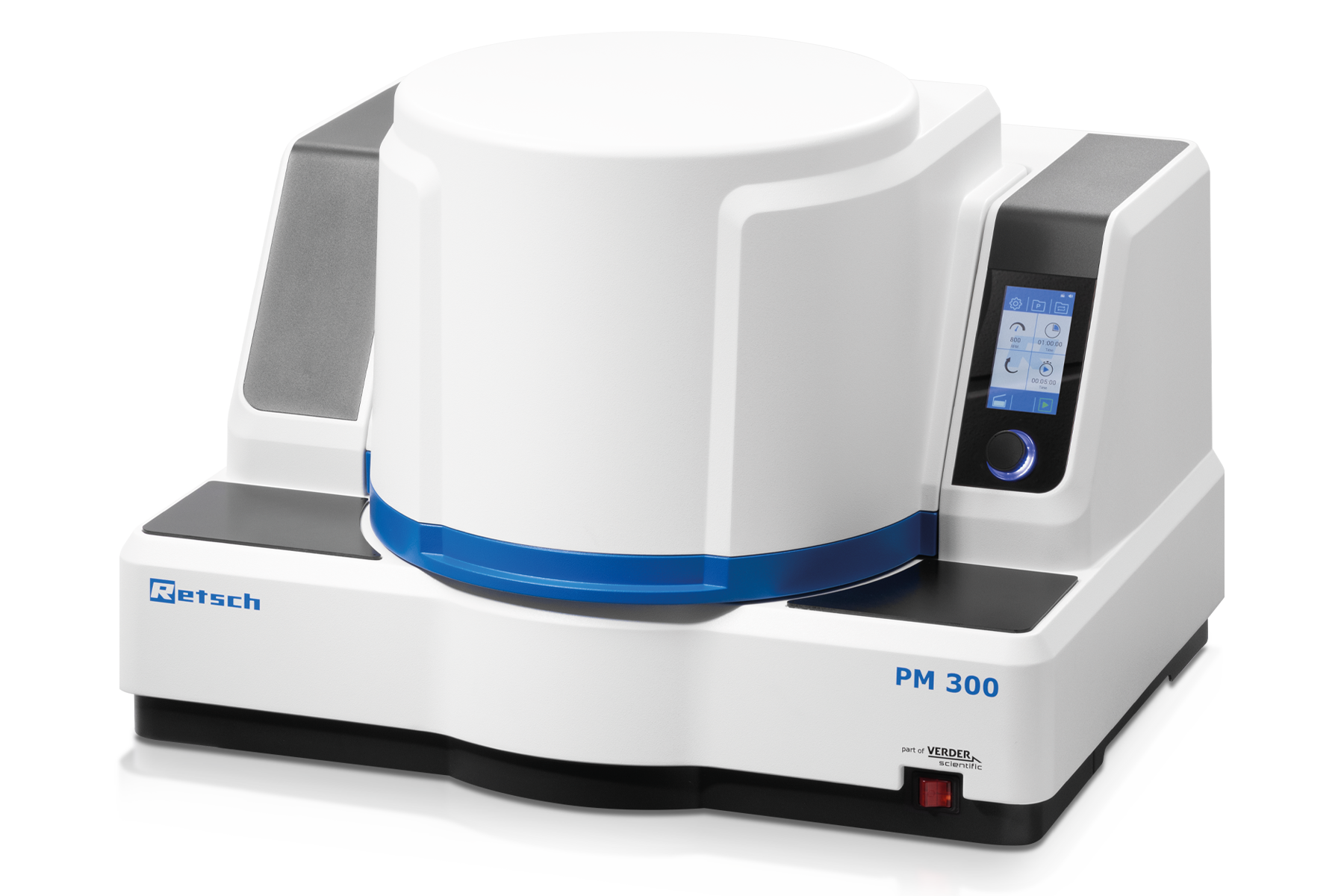

Planetary Ball Mill PM 300 技术参数
| Applications: | pulverizing, mixing, homogenizing, colloidal milling, mechanical alloying, mechanochemistry, co-crystal screening |
|---|---|
| Field of application: | agriculture, biology, chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material: | soft, hard, brittle, fibrous - dry or wet |
| Size reduction principle: | impact, friction |
| Max. feed size: | < 10 mm |
| Final fineness: | < 1 µm, for colloidal grinding < 0.1 µm |
| Batch size / feed quantity: | max. 2 x 220 ml |
| No. of grinding stations: | 2 |
| Speed ratio: | 1 : -2 |
| Sun wheel speed: | 50 - 800 min-1 |
| Effective sun wheel diameter: | 180 mm |
| G-force: | 64 g |

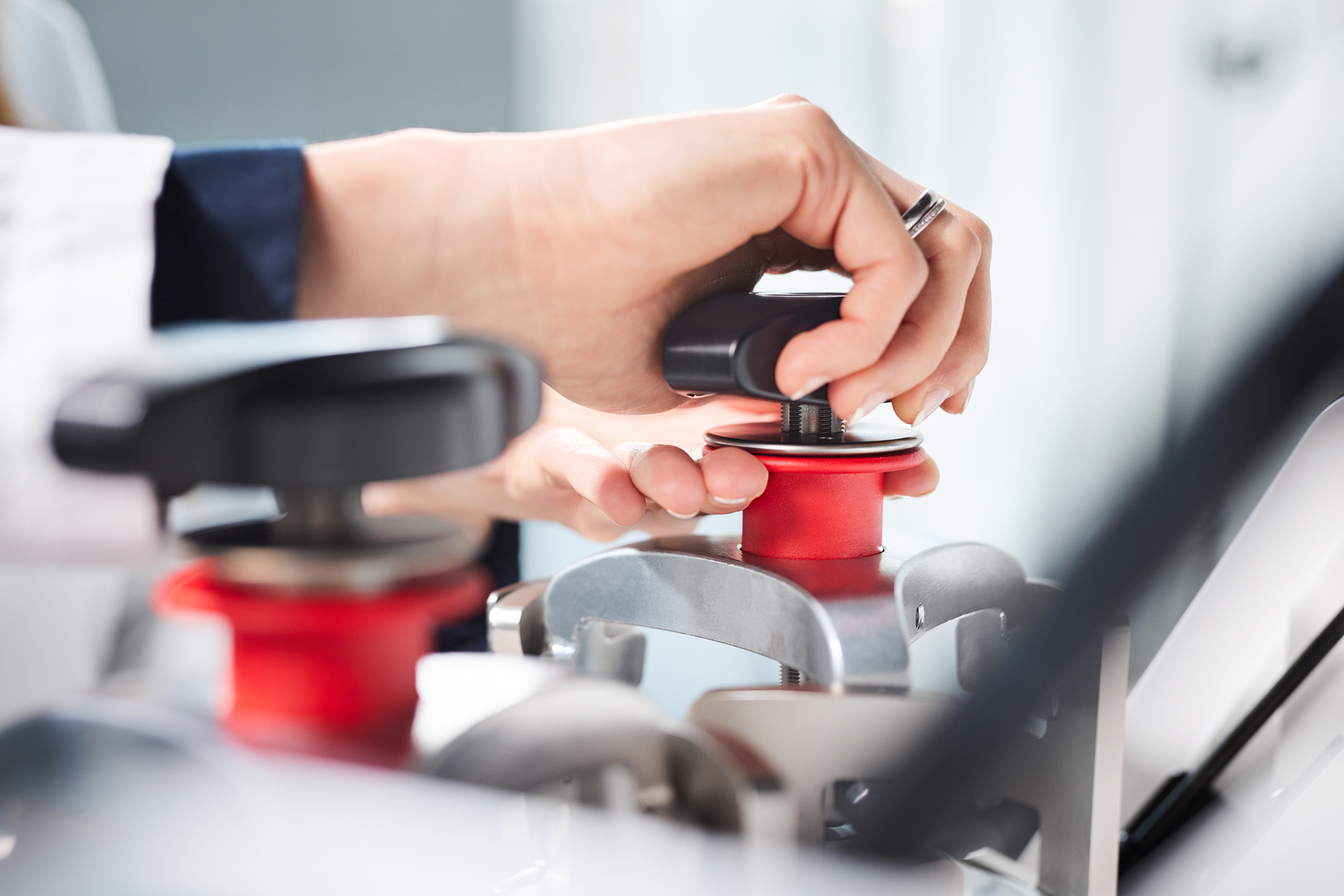

| Type of grinding jars: | optional areation covers, safety closure devices |
| Material of grinding tools: | hardened stainless steel, tungsten carbide, agate, sintered aluminium oxide, zirconium oxide |
| Grinding jar sizes: | 12 ml / 25 ml / 50 ml / 80 ml / 125 ml / 250 ml / 500 ml |
| Stackable grinding jars: | 12 ml / 25 ml / 50 ml / 80 ml |
| Adapter for single-use glas vials: | 24 x 1.5 ml / 7 x 20 ml |

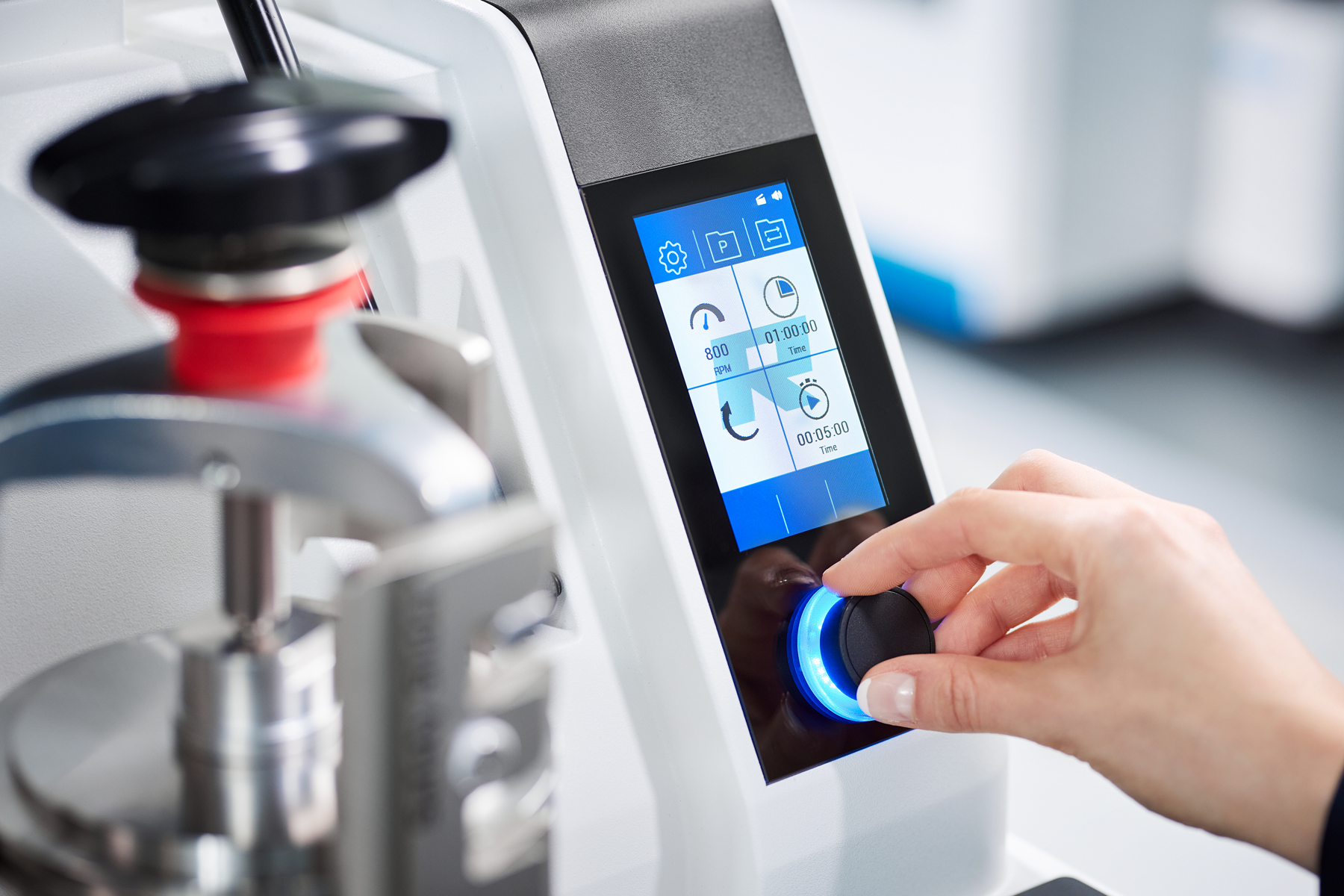

| Setting of grinding time: | digital, 00:00:01 to 99:59:59 |
| Interval operation: | yes, with direction reversal |
| Interval time: | 00:00:01 to 99:59:59 |
| Pause time: | 00:00:01 to 99:59:59 |
| Storable SOPs: | 12 |
| Storable cycling programs: | 4 |
| Measurement of input energy possible: | yes |
| Interface: | USB, RASPI |
| Drive: | 3-phase asynchronous motor with frequency converter |
| Drive power: | 2,5 kW |
| Electrical supply data: | 200-240 V, 50/60 Hz |
| Power connection: | 1-phase |
| Power consumption: | ~ 3335 VA |
| Protection code: | IP 20 |
| W x H x D closed: | 745 x 525 x 580 mm |
| Net weight: | ~ 118 kg |
| Standards: | CE |
| Patent / Utility patent: | yes |
