数据处理软件 EasySieve pro /
EasySieve pharma

数据处理软件 EasySieve pro /<br>EasySieve pharma

联系我们
报价详情

EasySieve pro / EasySieve pharma 技术参数

System requirements: Windows 11 or higher
Computer: IBM compatible PC
CPU: 1.6 GHz or more, Multicore (recommended Intel i7 or comparable)
RAM: 4 GB minimum (8 GB recommended)
Connections: min. 2 x USB 2.0 (sieving machine, balance)
HDD: 256 GB
Display resolution: 1920 x 1080
Graphical User Interface, guided sieving: Yes
Languages: German and English
Parameter units changeable: size in mm/µm/mesh/inch
mass in g/kg
time in s/min
SOPs: Yes, integrated in methods
Individual sample labelling: Yes, for each sample, reference to method during data choice and in overview
Parameter setting per test sieve: Yes
LIMS ready: yes
Teamviewer online support: Yes
Screenshot function: yes
Back-up function: Yes
Automatic storage of results: Yes
Results shown, as table or graphs: Yes
Data export: Yes: *.xls, *.xlsx, *.xps, *.csv, *.pdf, *.png, *.jpg, *.txt, *.rtf, *.html, *.mht
Different diagram types (linear or logar.): Yes, log/lin, log/log, lin/lin for x and y axis
Different diagram types: Cumulative, RRSB, Histogram, density, residual distribution
Calculation of individual dx values: More than 10
Label naming: ISO (q3/Q3/1-Q3/p3) or descriptive (density/total distribution/residual distribution/percent)
Overlay of results: Yes, up to 32

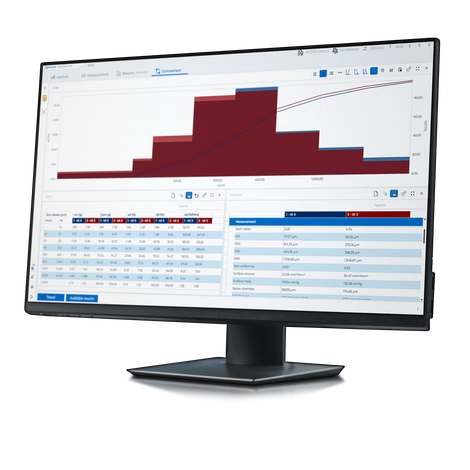

Curves, tables and overview
Individual scalable diagrams: Yes, via zoom in or via setting of max. axis value
Highest precision thanks to: Sieve-Check function, Weighing-Assistant and Weigh-in tolerance, Filter function for sieve rows, TrendAnalysis for sieves and methods, Backweighing-Tolerance
Connection to sieving machines: Yes, AS 200 control B (USB, from year of manufacture 2016), AS 200 jet (USB), AS 200 tap (RS232), AS 300 control B (USB, from year of manufacture 2016), AS 400 control (RS232), AS 450 control (RS232)
Connection of external balance: Yes, RS232-communication via USB
Standard balance driver: Yes, scale management for external scales, communication protocols for specific scales Kern, Sartorius, Mettler are stored.

附加功能 EasySieve pharma 技术参数

Software validation: ISPE GAMP 5, EC GMP Annex 11 conform, AuditTrail acc. to FDA 21 CFR part 11
User management: Yes, free configurable levels, individual rights option for each user
Role and password management: Yes
Audit-trail with E-signature: Yes
Enforce audit trail comments: yes
Generation/Export of user lists and daily reports: Yes
Restore: Yes

分析筛分软件EasySieve / EasySieve CFR 资料下载

正在显示结果 1 - 1,共 1
重置所有筛选器

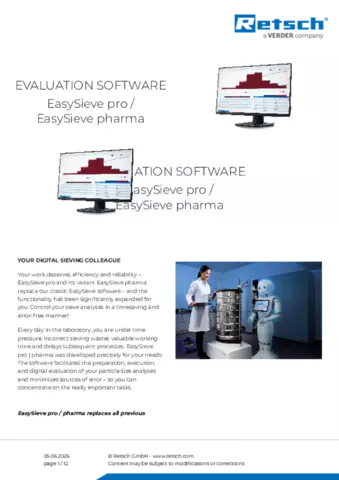

Product data sheet Easy Sieve
