Applications:	size reduction by cutting
Field of application:	agriculture, chemicals / plastics, electronics, environmental / recyling, food / feed, pharma / biotech / medtech, construction materials, power generation / energy
Feed material:	soft, medium-hard, tough, elastic, fibrous
Size reduction principle:	shearing, cutting
Max. feed size:	50 mm
Final fineness:	0.25 - 10 mm
Speed at 50 Hz (60 Hz):	500 - 4,000 min-1
Rotor peripheral speed:	4.3 - 27.1 m/s
Rotor diameter:	129.5 mm
Types of rotors:	parallel section rotor / 3-disc rotor
Types of hoppers:	EasyInspect hopper
Material of grinding tools:	stainless steel, steel for heavy-metal free grinding
Sieve sizes:	trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 mm square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 mm
Collector systems /capacities:	collecting glass 0.25 / 0.5 l (not for gravity chamber) and collecting receptacle 3 l
Drive:	3-phase asynchronous motor with frequency converter
Drive power:	1.5 kW
Electrical supply data:	100 V, 110 V, 120 V, 20 A 200-230 V, 10 A
Power connection:	1-phase
Engine brake:	yes
Protection code:	IP 20
W x H x D closed:	565 x 750 x 530 (with base frame and hopper)
Net weight:	80 kg
Standards:	CE

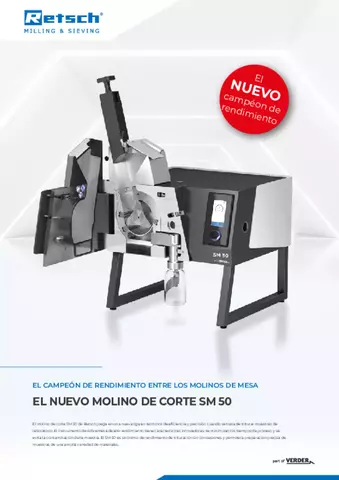

Molino de corte SM 50
