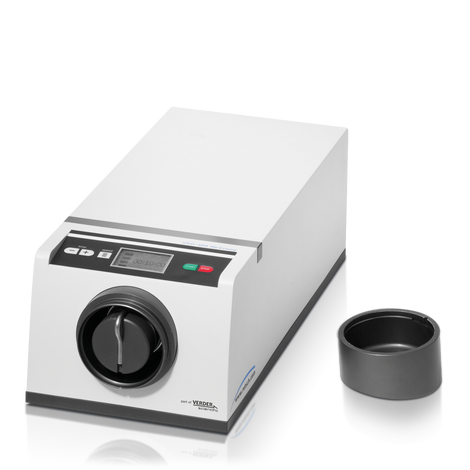

Moara XRD McCrone Date tehnice
| Applications: | grinding, mixing and triturating, dry and wet |
|---|---|
| Field of application: | X-ray diffraction |
| Feed material: | medium-hard, hard, brittle, fibrous |
| Max. feed size: | < 0.5 mm |
| Final fineness: | < 1 µm |
| Speed at 50 Hz (60 Hz): | 1,000 - 1,500 min-1 in 4 steps |
| No. of grinding stations: | 1 |
| Typical mean grinding time: | 3 - 30 min |
| Dry grinding: | yes |
| Wet grinding: | yes |
| Cryogenic grinding: | no |
| Material of grinding tools: | agate, zirconium oxide, corundum |
| Grinding jar sizes: | 125 ml |
| Setting of grinding time: | digital, 00:00:10 to 99:59:50 |
| Drive: | DC-Motor |
| Drive power: | 50W |
| Electrical supply data: | 100-240 V, 50/60 Hz |
| Power connection: | 1-phase |
| Power consumption: | 33 VA |
| Protection code: | IP 30 |
| W x H x D closed: | 205 x 155 x 520 mm |
| Net weight: | ~8.9 kg |
| Standards: | CE |
