EasySieve pro / EasySieve pharma Technische Daten
| System requirements: | Windows 11 or higher |
|---|---|
| Computer: | IBM compatible PC |
| CPU: | 1.6 GHz or more, Multicore (recommended Intel i7 or comparable) |
| RAM: | 4 GB minimum (8 GB recommended) |
| Connections: | min. 2 x USB 2.0 (sieving machine, balance) |
| HDD: | 256 GB |
| Display resolution: | 1920 x 1080 |
| Graphical User Interface, guided sieving: | Yes |
| Languages: | German and English |
| Parameter units changeable: | size in mm/µm/mesh/inch mass in g/kg time in s/min |
| SOPs: | Yes, integrated in methods |
| Individual sample labelling: | Yes, for each sample, reference to method during data choice and in overview |
| Parameter setting per test sieve: | Yes |
| LIMS ready: | yes |
| Teamviewer online support: | Yes |
| Screenshot function: | yes |
| Back-up function: | Yes |
| Automatic storage of results: | Yes |
| Results shown, as table or graphs: | Yes |
| Data export: | Yes: *.xls, *.xlsx, *.xps, *.csv, *.pdf, *.png, *.jpg, *.txt, *.rtf, *.html, *.mht |
| Different diagram types (linear or logar.): | Yes, log/lin, log/log, lin/lin for x and y axis |
| Different diagram types: | Cumulative, RRSB, Histogram, density, residual distribution |
| Calculation of individual dx values: | More than 10 |
| Label naming: | ISO (q3/Q3/1-Q3/p3) or descriptive (density/total distribution/residual distribution/percent) |
| Overlay of results: | Yes, up to 32 Curves, tables and overview |
| Individual scalable diagrams: | Yes, via zoom in or via setting of max. axis value |
| Highest precision thanks to: | Sieve-Check function, Weighing-Assistant and Weigh-in tolerance, Filter function for sieve rows, TrendAnalysis for sieves and methods, Backweighing-Tolerance |
| Connection to sieving machines: | Yes, AS 200 control B (USB, from year of manufacture 2016), AS 200 jet (USB), AS 200 tap (RS232), AS 300 control B (USB, from year of manufacture 2016), AS 400 control (RS232), AS 450 control (RS232) |
| Connection of external balance: | Yes, RS232-communication via USB |
| Standard balance driver: | Yes, scale management for external scales, communication protocols for specific scales Kern, Sartorius, Mettler are stored. |
Zusätzliche Funktionen EasySieve pharma Technische Daten
| Software validation: | ISPE GAMP 5, EC GMP Annex 11 conform, AuditTrail acc. to FDA 21 CFR part 11 |
|---|---|
| User management: | Yes, free configurable levels, individual rights option for each user |
| Role and password management: | Yes |
| Audit-trail with E-signature: | Yes |
| Enforce audit trail comments: | yes |
| Generation/Export of user lists and daily reports: | Yes |
| Restore: | Yes |
Auswertesoftware EasySieve / EasySieve CFR Downloads
Gesamtkatalog

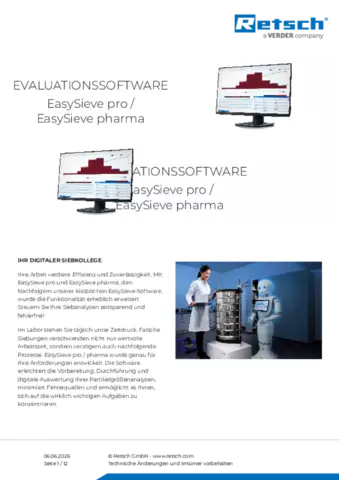

Produktdatenblatt Easy Sieve
Download
pdf Deutsch (~1 MB)
pdf Englisch (~1 MB)
pdf Bulgarisch (~1 MB)
pdf Japanisch (~1 MB)
pdf Spanisch (~1 MB)
pdf Tschechisch (~1 MB)
pdf Russisch (~1 MB)
pdf Niederländisch (~1 MB)
pdf Portugiesisch (~1 MB)
pdf Chinesisch (~2 MB)
pdf Norwegisch (~1 MB)
pdf Ungarisch (~1 MB)
pdf Koreanisch (~1 MB)
pdf Italienisch (~1 MB)
pdf Rumänisch (~1 MB)
pdf Französisch (~1 MB)
pdf Türkisch (~1 MB)
pdf Polnisch (~1 MB)
pdf Slowakisch (~1 MB)
Produktübersicht

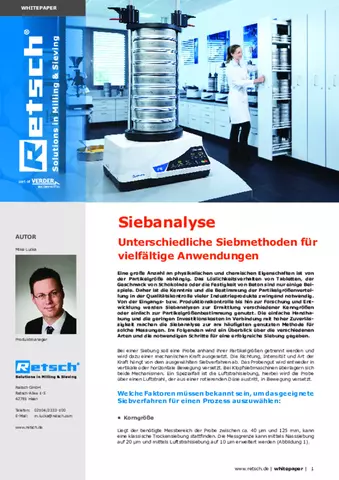

White Paper: Siebanalyse - Unterschiedliche Siebmethoden für vielfältige Anwendungen
Die Kenntnis und die Bestimmung der Partikelgrößenverteilung ist in der Qualitätskontrolle vieler Industrieprodukte zwingend notwendig. Von der Eingangs- bzw. Produktionskontrolle bis hin zur Forschung und Entwicklung werden Siebanalysen zur Ermittlung verschiedener Kenngrößen oder einfach zur Partikelgrößenbestimmung genutzt.Das White Paper gibt einen Überblick über die verschiedenen Methoden und die notwendigen Schritte für eine erfolgreiche Siebung.
