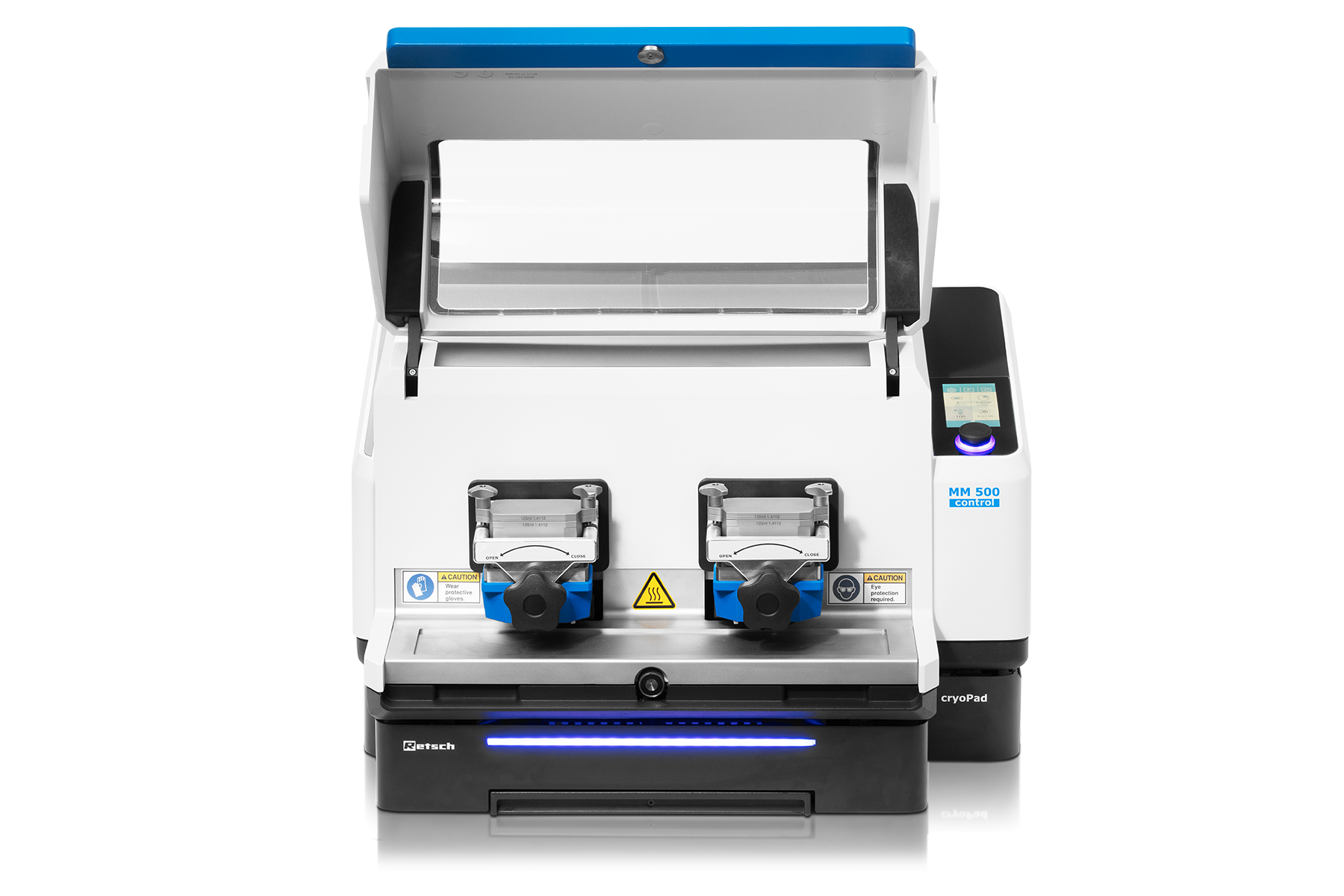

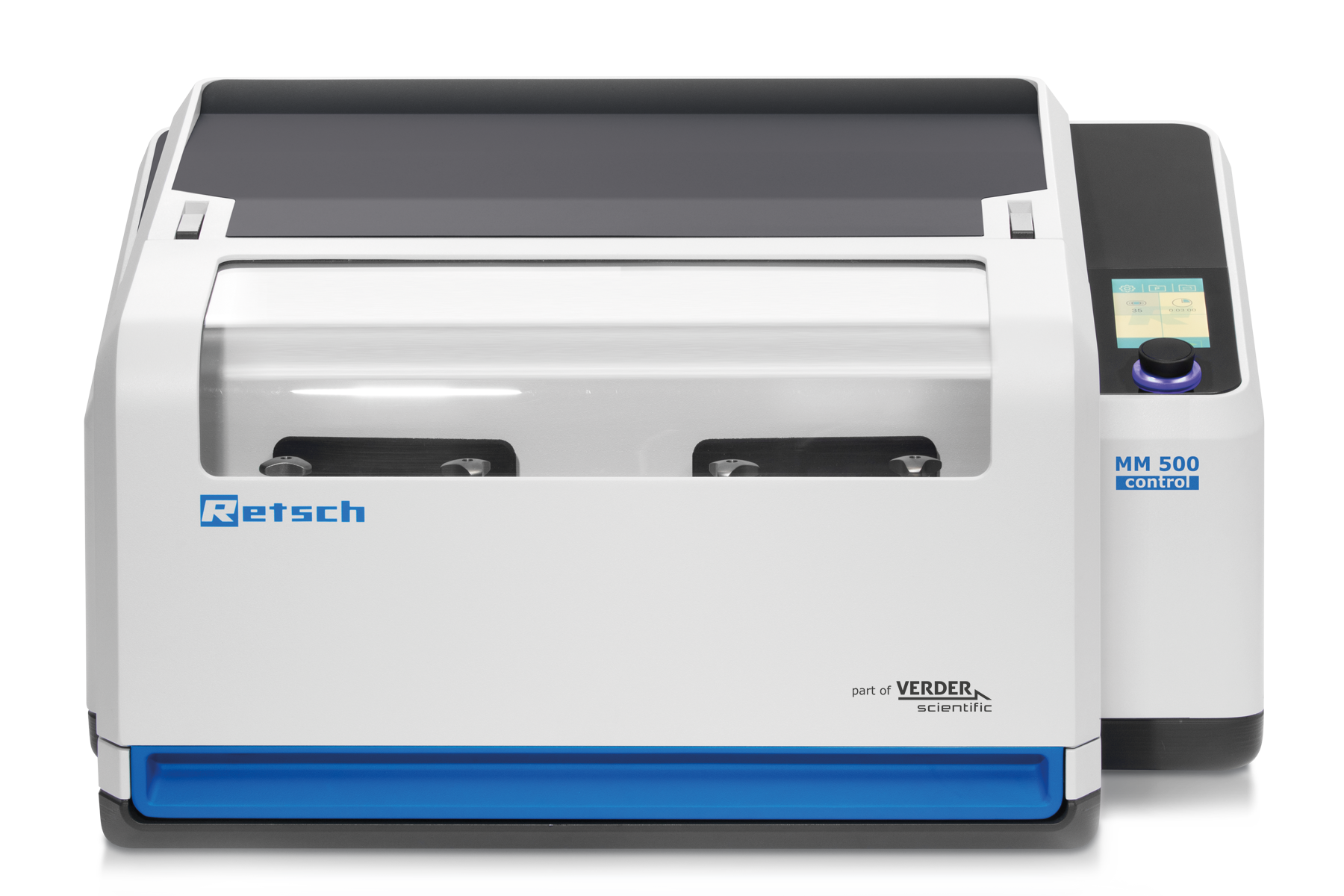

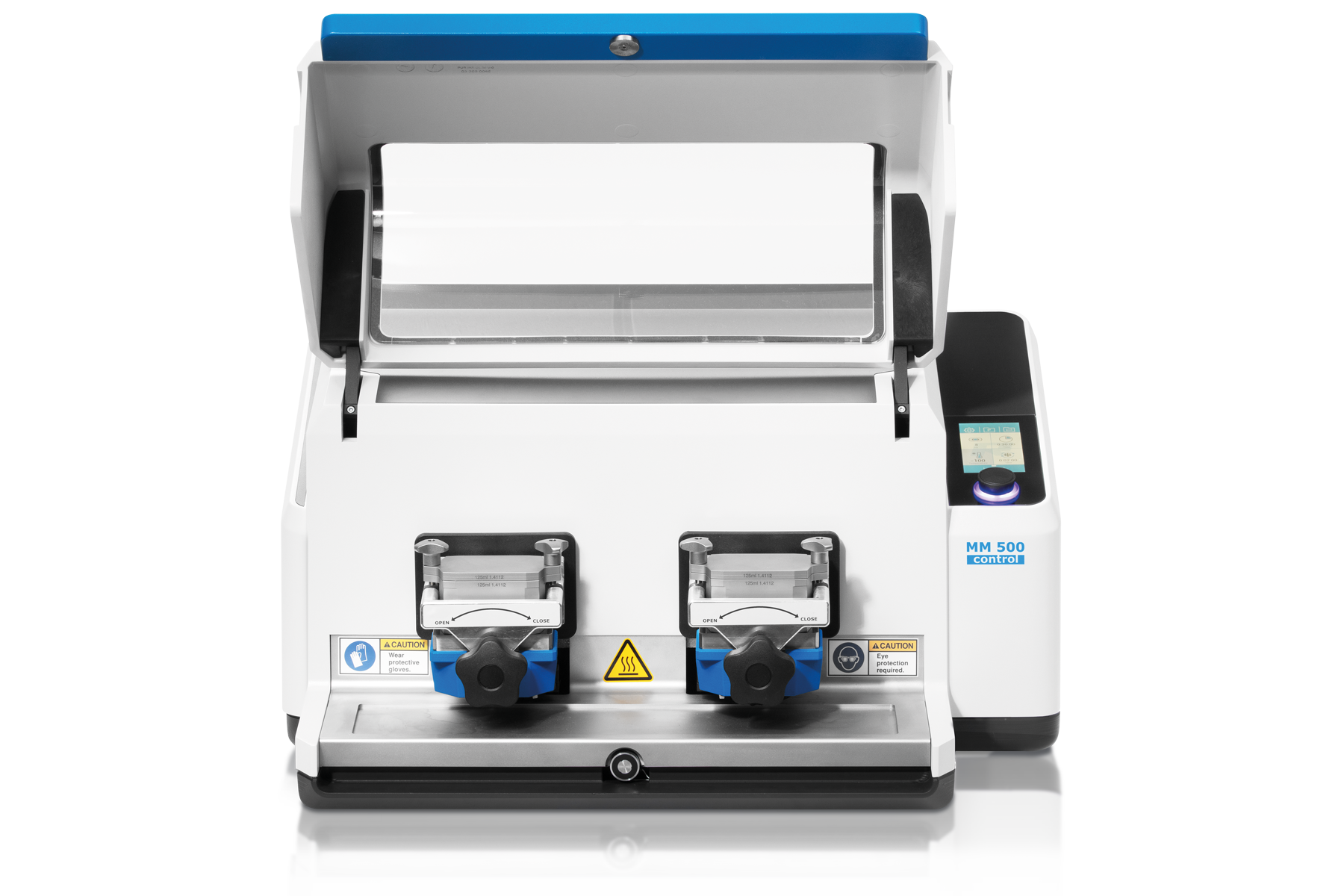

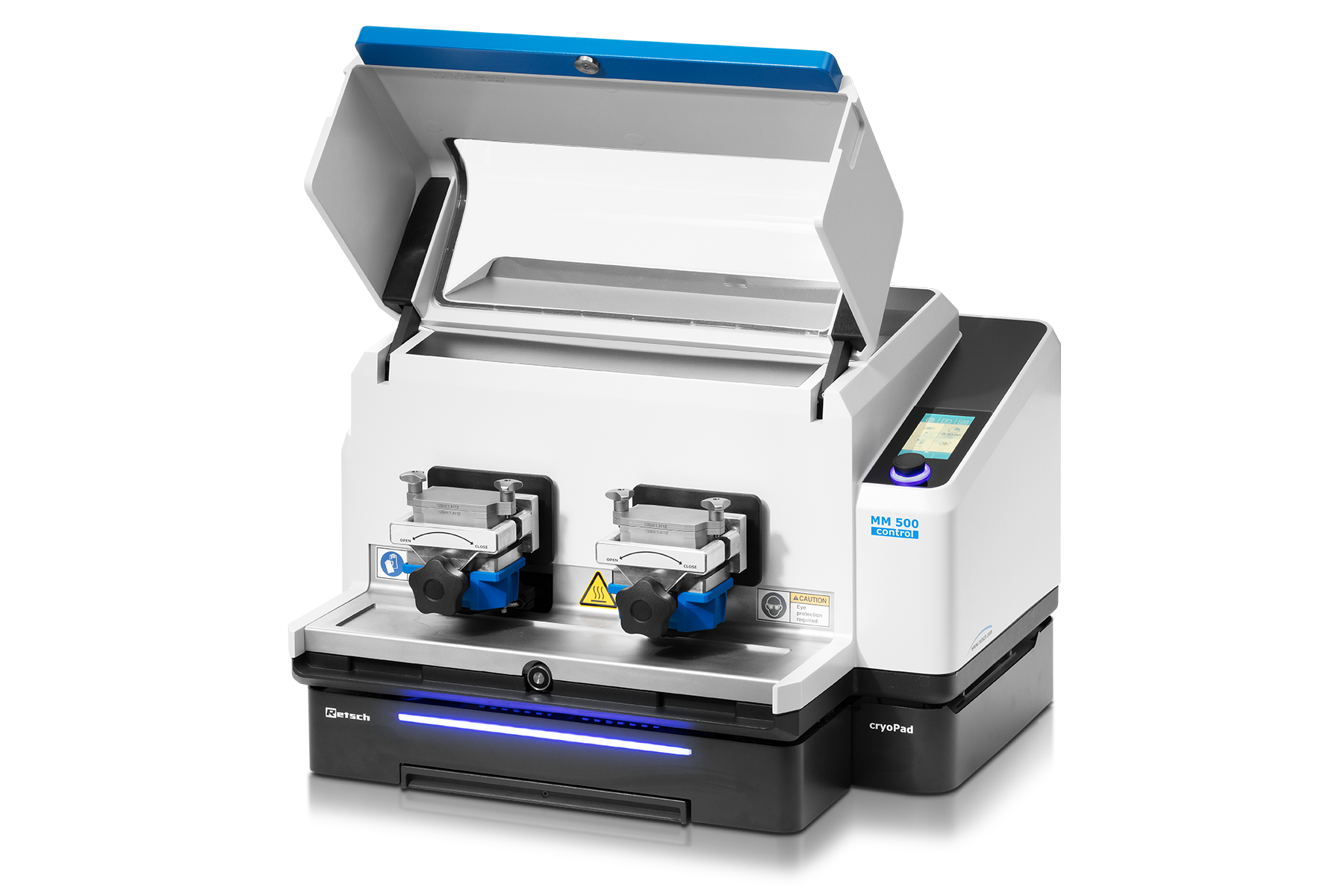

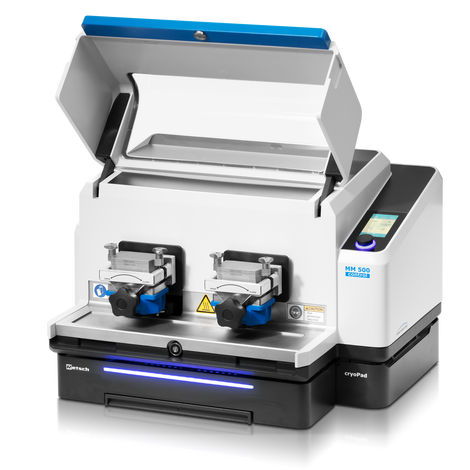

Mikserli Öğütücü MM 500 control Teknik Veri
| Applications: | mechanochemistry, mechanical alloying, size reduction, mixing, homogenization, cryogenic grinding |
|---|---|
| Field of application: | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material: | hard, medium-hard, soft, brittle, elastic, fibrous |
| Size reduction principle: | impact, friction |
| Max. feed size: | <= 10 mm |
| Final fineness: | ~ 0.1 µm |
| Batch size / feed quantity: | max. 2 x 45 ml |
| Grinding chamber volume: | max. 2 x 125 ml |
| No. of grinding stations: | 2 |
| Vibrational frequency: | 3 - 30 Hz (180 -1800 min-1) |
| Setting of temperature setpoint | digital, 0 ... -100 °C (only with cryoPad) |
| Setting of grinding time: | digital, 10 s - 8 h |
| Setting of sample cooling time | digital, 0 ... 60 min (only with cryoPad) |
| Setting of grinding time: | digital, 10 s - 8 h |
| Total grinding time: | 99 h |
| Storable SOPs: | 12 |
| Number of storable cycle programs: | 4 (with 99 repeats) |
| Typical mean grinding time: | 30 s - 2 min |
| Dry grinding: | yes |
| Wet grinding: | yes |
| Cryogenic grinding: | yes |

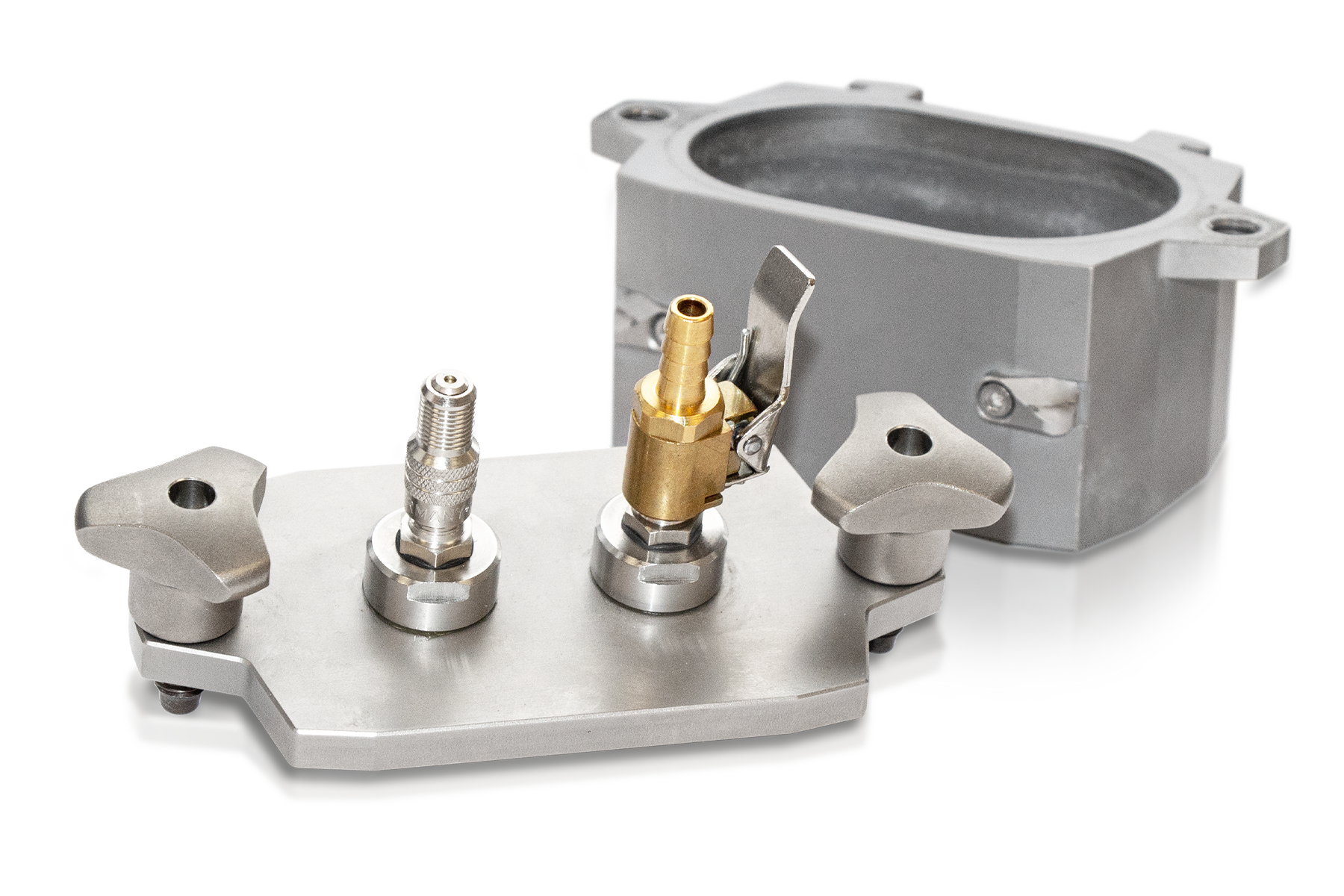

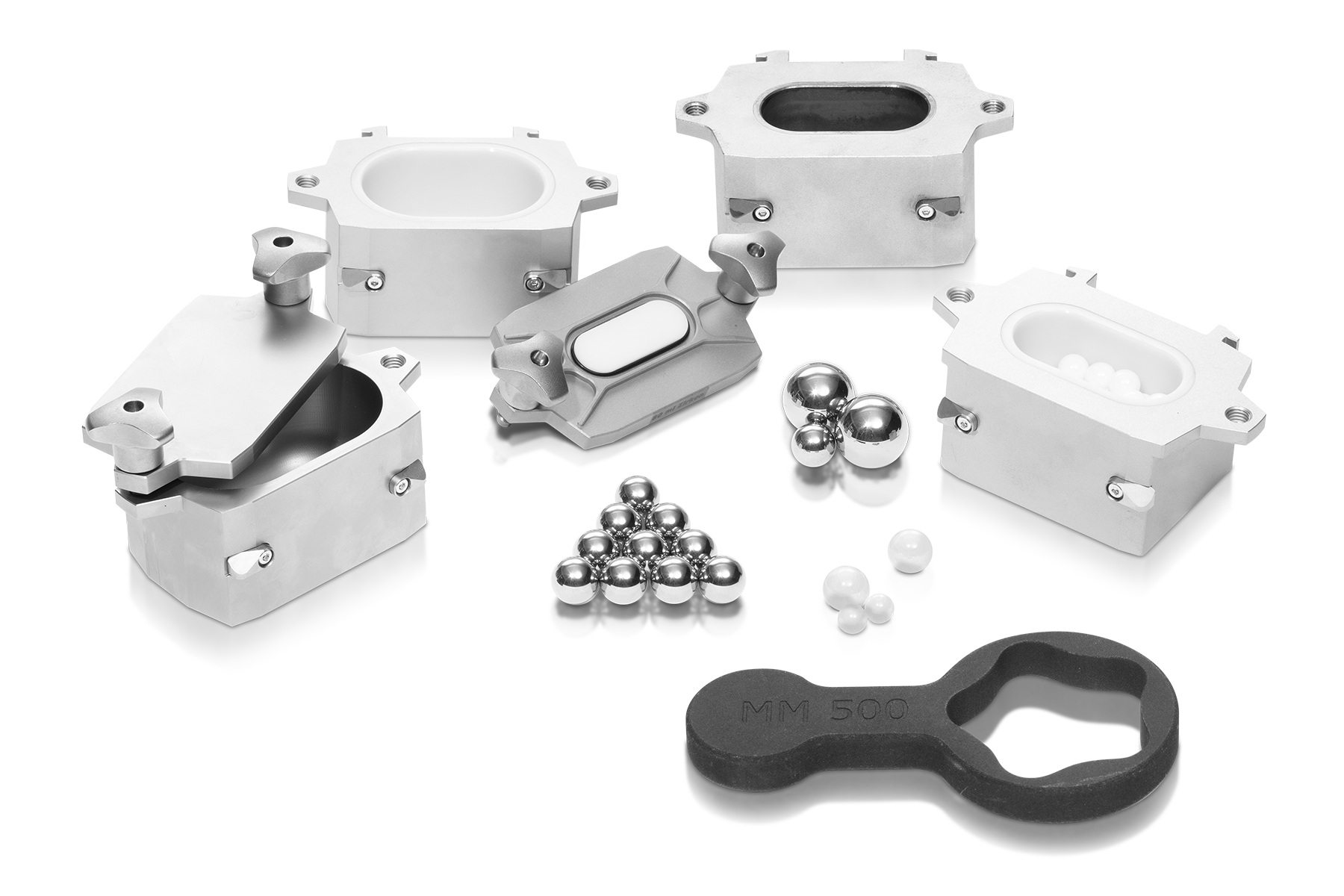

| Type of grinding jars: | screw-lock jar with integrated safety closure devices, multi cavity jar, adapter for safe-lock reaction vials |
| Material of grinding tools: | hardened steel, stainless steel, tungsten carbide, zirconium oxide |
| Grinding jar sizes: | 10 ml / 25 ml / 50 ml / 80 ml / 125 ml |
| Electrical supply data: | 100-120 V, 50/60 Hz; 200-230 V, 50/60Hz |
| Power connection: | 1-phase |
| Protection code: | IP 30 |
| Power connection: | 1-phase |
| Power consumption: | 750 W |
| W x H x D closed: | 690 x 375 x 585 mm |
| W x H x D closed with cryoPad: | 690 x 485 x 585 mm |
| Net weight: | ~ 63 kg |
| Standards: | CE |

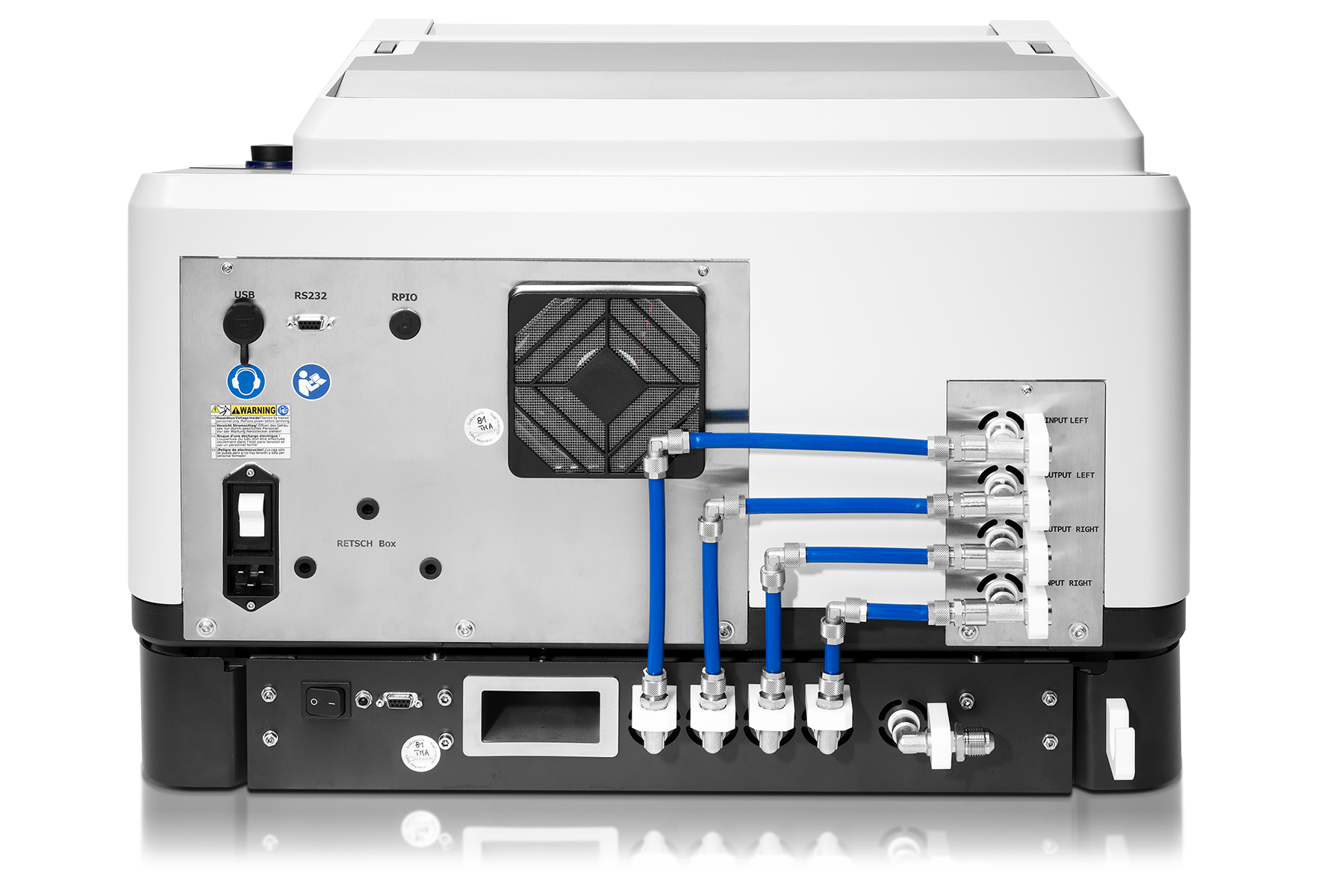

| Connection thread size device input: | G 1/4" (inner thread) |
| Connection thread size tubing set: | G 3/8" (outer thread) |
| Permissible operating pressure cooling device (provided by customer): | 0 ... 5 bar |
| Typical mean grinding time: | 30 s - 2 min |
| typical pressure range of continous cooling unit e.g. cryostat: | 1 ... 2 bar |
| permissible pressure range of LN2 supply: | 1.2 ...1.4 bar |
| Permissible fluids: | water, water-glycole mixture, thermal oil, liquid nitrogen |
| Thermal applications: | embrittling, cooling, heating, temperature control |
| Thermal applications: | embrittling, cooling, heating, temperature control |
| temperature range of fluids: | +100 °C ... -196 °C |
| temperature range of cooling plates: | +100 °C ... -100 °C |

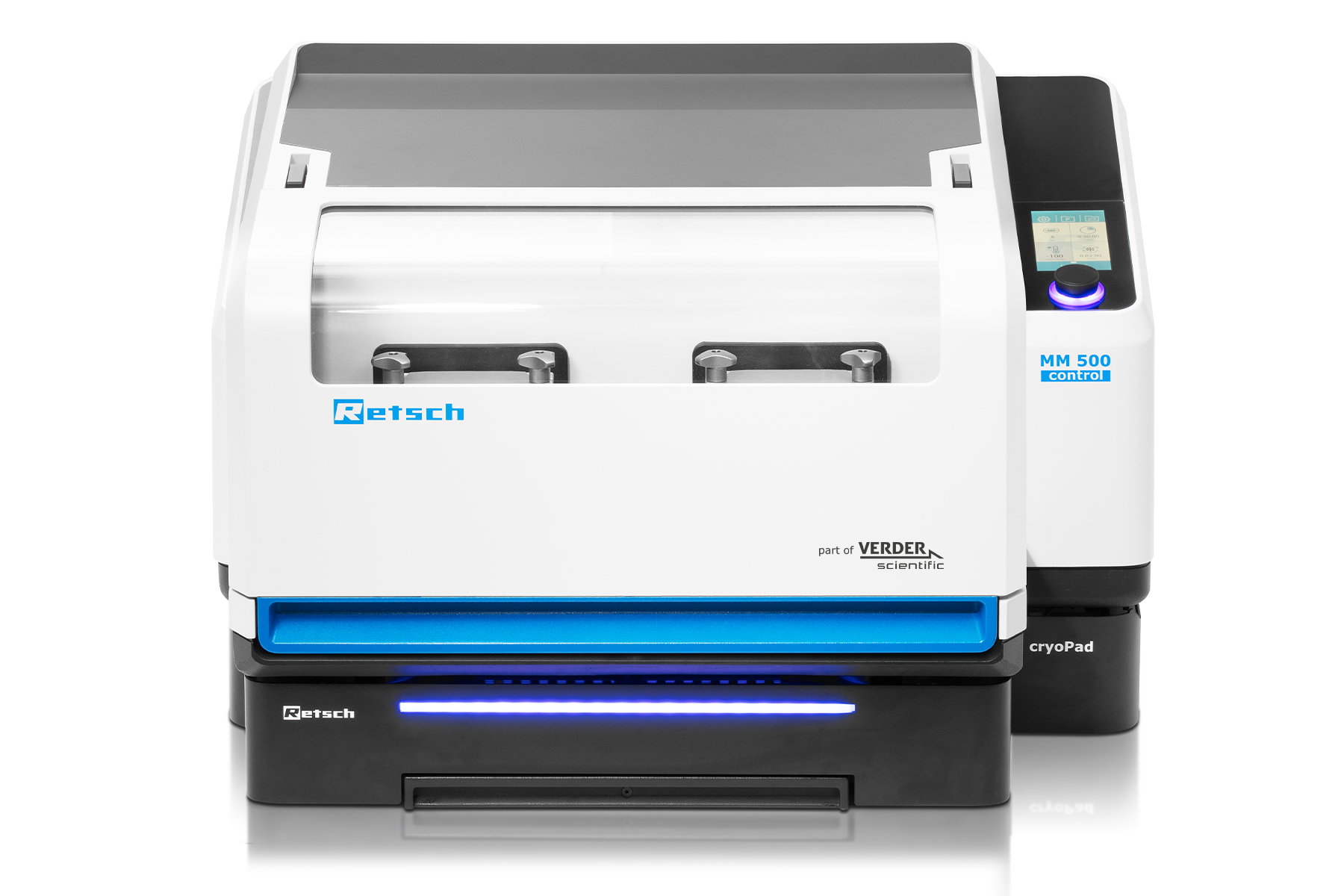

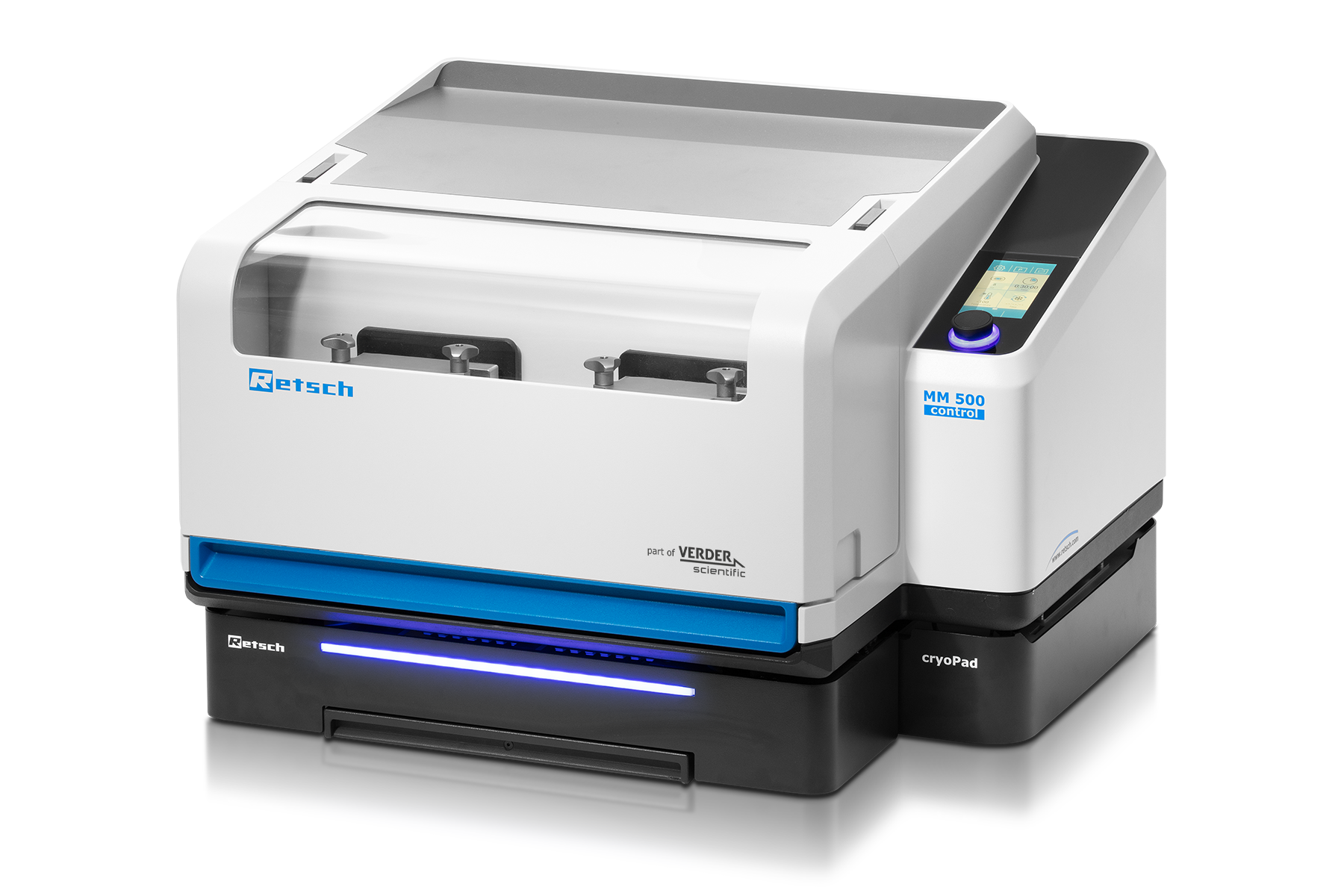

cryoPad Teknik Veri
| Applications: | cryogenic grinding with liquid nitrogen |
|---|---|
| Interface: | RS-232 (MM 500 control) |
| Communication connection: | via included connection cable |
| Power supply: | via external power supply |
| Electrical supply data (input external power supply): | 100-230V, 50/60 Hz |
| External power supply classification: | Medical grade isolation level |
| Electrical supply data (input cryoPad): | 24 V, 1 A |
| Accessories: | LN2 Autofill 150L, LN2 Autofill 50L |
| Accessories: | LN2 Autofill 150L, LN2 Autofill 50L |
| LED status light: | yes |
| W x H x D: | 670 x 110 x 590 mm |
| Net weight: | ~ 26 kg |
| Standards: | CE |
| Connection thread size device input | G 1/4" (inner thread) |
| Connection thread size of stainless steel tubing adapter | UNF 3/4" |
| Permissible pressure range of LN2 supply: | 1.2 ...1.4 bar |
| Permissible fluids: | Liquid nitrogen |
| Emissions: | Liquid nitrogen gas, condensation |
| Connection: | via included tubing set |
| Exhaust outlet: | via included Exhaust adapter and aluminum corrugated tube |
| temperature range of fluids: | -196 °C |
| temperature control algorithm: | PID temperature control |
| Setting of temperature setpoint | digital, 0 ... -100 °C |
| Setting of sample cooling time | digital, 0 ... 60 min |
